This 6ft USB to 9 pin serial cord adds a COM port to your computer via USB port, allowing you to make the most of your existing devices or to let you free up your existing PC serial port.

Seriously Build a Sturdy USB to Serial Cable for Reliable Data Transmission
USB to serial adapter enables you to use your devices reliably, for its materials is strong: gold plated connectors and copper conductors guarantee supreme signal purity; foil and copper braided shielding that reduces EMI/RFI noise.

Translucent plastic shell make it a stylish data cord and also you can see the used materials

A Perfect Lightweight Accessory for Your Devices
This short USB to RS232 cord is powered directly from the USB port, so you don’t have to carry those power supply adapters here and there. And the 6ft cable is long enough to be useful but not so long as to get in the way when you connect a laptop to modem.

Specification
Connector A: USB Type A Male
Connector B: 9 pin Serial RS-232 Male;
USB 2.0 Specification, Back Compatible with USB 1.1, 1.0;
Max Baud Rate: 115200bps;
Functional Pin: Pin 2 (RXD), Pin 3 (TXD), Pin 5 (GND)
OS Compatibility: Windows 10 , 8 , 8.1 , 7 , XP, Vista and Mac OS.
Cable Length: 6 Feet
Important Note:
1. Please do NOT connect the adapter to serial device until installing the driver on your computer or Mac. If there is any questions about driver installation, please contact us.

2. This is a straight through serial cable, do not function as a null modem cable.

Original Packing Included
1 x USB to Serial Converter Cable (6ft)
1 x CD Driver

Brand : Storite

Color : Black

Interface: USB 2.0 Serial Port (RS-232)

– Connect your legacy serial devices via USB
– Ideal for connecting digital cameras, PDAs, cell phones, routers/PBXs and testing equipments
– System requirements: 1 free USb port, Microsoft windows 98SE, ME, 2000 and XP supported, macintosh OS 8.6 through 10.xsupported
– Comes with one USB cable and one driver disk

Features:

Simple and easy to install
Plugs into a USB port on a Windows PC or Macintosh
Draws power from USB connection, no power adapter required
Supports default ROM or external EEPROM for device configuration
Supports remote wake-up and power management
Works with most popular brands of PDAs
Supports data rates over 12 Mbps
Universal Serial Bus 1.1
1 year Seller Warranty
One male DB9 RS-232 serial port

System Requirements :

USB equipped PC with 486DX4-100 MHz mininum running Windows 98 or later including XP
USB equipped Macintosh with G3 mininum running Mac OS Classic 8.6 or later CD-ROM drive

DTECH USB to female serial adapter (DB9): a bridge between PC and old COM port devices
With the rise of USB, DB9 Serial Connections have become even harder to come by on new computer systems.

By converting USB to 9 pin serial port Connection, you can make use of older equipment that still relies on DB9 Serial Connection, there is no need to worry about upgrading to equipment when you get the USB to serial with 9 pin female end cable.

USB to RS-232 Serial Adapter provides an external plug and play RS-232 serial connection, letting you free up existing 9 pin port. Users have the capability to utilize the adapter with serial port interface in an easy-to-use environment.

Built-in FTDI Chip: Reliable Data Transfer
Broadly compatible FT232 chip is a perfect solution for any setup. Fully compatible with serial apps on Windows (Mac and Linux) and modifying the apps is no needed.
10 Feet Portable USB to serial female adapter cable for More Placement Choices
USB to serial female port converter is USB-powered so you don’t need to carry all those bulky power adapters around here and there. 3 meters is long enough for devices to reach to a place needed.

Specific
Connector: USB Type-A Male to 9-pin RS-232 Female
Chip: FT232RL
Baud Rate: Range from 70bps to 921600bps
OS Compatibility: Windows 7, 8, 10 and Mac OS v8.6 or higher, Linux

Note:
1.Serial (COM) Port of this 10ft Cable is Female Interface, which fit for Serial Device with 9-Pin Male Port. Please make sure the interface of your device is standard serial male before purchasing.
2. DB9 Female socket is with standard pinout: pin 2 – TXD, pin 3 – RXD, pin 5 – GND
If any installation or usage issues, please email us or you may download a driver and usage guide on FTDI official website (ftdichip)

What’s Included
1 x USB DB9 Female Serial cable 10ft
1 x CD driver

The Sabrent CB-DB9P USB to Serial converter is the perfect solution for transferring data from a PDA or digital camera. The USB to DB9 provides a connection between an available USB port and the more traditional RS-232 serial port found on many devices. This adapter is designed for connections to cellular phones, PDAs, digital cameras, modems, or ISDN terminal adapters through your USB port. Simply plug your device into the adapter and the adapter into your PC or Mac. COM ports and Baud rates can be modified to desired set up.

Features:
* Provides the connection between USB and the traditional RS-232 serial port
* Works with cellular phones, PDA, digital cameras, modems, and others
* 1-ft or 0.3m length
* Supports the RS-232 serial interface (standard 9-pin serial)
* Supports automatic handshake mode
* USB full speed communication and bus-powered
* Single cable USB to serial communication
* Easy installation

System requirements:
* Mac OS 9.1 & higher
* Windows 98SE /ME /2000 /XP /Vista /7/8/8.1/10
* Linux 2.4 or above

Package contents
* USB 2.0 TO SERIAL DB9 MALE (9 PIN) RS232 CABLE ADAPTER
* Driver CD

Warranty:
This product comes with a LIFETIME warranty.
In order for us to properly assist you, please follow these simple instructions:
Go to sabrent.com/support and click 'Submit a ticket'.
Submit your ticket.
You must include your Amazon Order ID# number in the subject line

DTECH serial port to USB adapter with FTDI chip for RS232 data communication

Computers are shrinking its size daily which means less room for antiquated connections. With the rise of USB, DB9 Serial Connections have become even harder to come by on new computer systems. This is where USB to DB9 Serial Adapter comes in to play.

By converting a USB Connection to a DB9 Serial Connection you can make use of older equipment that still relies on a 9 pin connection so there is no need to worry about upgrading to newer equipment.

The USB to RS-232 Serial Adapter provides an external plug & play RS-232 serial connection with your computer, letting you free up your existing serial port. Users have the capability to utilize the adapter with serial port interface in an easy-to-use environment.

Specific

Function: RS232 DB9 port, applied to PLC, Programming machine, Punch machine and other devices with serial port.
USB to serial port cable Length: 10 Feet
Chipset: FTDI – FT232
Supports Windows 10, 8, 7, MacOS8 or higher, Linux 2.4.0 and later
Gold Plated Interface
USB 1.1 and USB 2.0 compatible. Supports over 1Mbps data transfer rate

If have some issues on driver installation, you may google “ftdichip” and get into “ftdichip.com, find the driver on the page of Drivers > VCP Drivers. And also you can find driver installation guide on the page.

What’s Included

1 x USB 2.0 to DB9 RS232 Converter Cable (10ft)
1 x CD software driver

Product Description

Looking for a way to connect your serial devices to a USB port on your PC? The Keyspan “High Speed” USB Serial Adapter is a simple, inexpensive, and reliable way to make this connection. The Adapter is ideal for use with modems, digital cameras, ISDN terminal adapters, graphics tablets, PDAs, bar code scanners, label printers and other serial devices which require an RS-232 connection.This “High Speed” USB Serial Adapter supports data rates up to 230 Kbps twice the speed of a standard PC serial port. It is 100% USB compliant and features simple “Plug and Play” installation (no IRQs). Ideal for laptops (it weighs just 2 oz.), the Adapter draws its power from the USB connection so no power adapter is required 3-year limited warranty

Amazon.com

---

Customer Questions & Answers

See questions and answers

825 customer reviews

4.6 out of 5 stars

4.6 out of 5 stars

5 star		81%
4 star		10%
3 star		3%
2 star		2%
1 star		4%

---

By feature

Easy to use

4.84.8

Durability

4.84.8

Easy to install

4.74.7

---

Review this product

Share your thoughts with other customers

Write a customer review

---

Customer images

See all customer images

Read reviews that mention

usb to serialtripp liteserial adapterusb cablehighly recommendhigh speedmacbook prolike a charmserial portsevery timeusb portmake surekeyspan usa-ham radioright out of the boxsnow leopardworks as advertisedrouters and switcheseasy to installspeed usb

Top ReviewsMost recentTop Reviews

There was a problem filtering reviews right now. Please try again later.

Tom

4.0 out of 5 starsThe best USB serial port adapter for use with control system hardware

March 8, 2012

Verified Purchase

(Please see my update at the end of this review before considering the purchase of this adapter)

I’ve been using the Keyspan USA-19HS for years. The first one was purchased after reading recommendations from several control system experts, and I haven’t been disappointed. Rockwell Automation sells their own version of a USB serial port adapter (PN 9300-USBS), but it’s about $130. Don’t bother. The Keyspan is inexpensive and has proven to be 100% compatible with everything I’ve needed to connect to via a serial cable.

I’ve used it with laptops and desktops running Windows 98SE, Windows XP and Windows 7. I’ve used it on SLC 5/xx series processors, ControlLogix 5000 processors, Siemens/TI 505 series processors, Keyence laser measurement equipment, modems, serial printers, barcode scanners, Reliance and Rockwell/Allen-Bradley drives, and just about everything else. Never a problem. It works with straight serial cables, null modem cables, and every type of serial adapter I’ve thrown at it. The Keyspan USA-19HS is the cheapest piece of control system communication hardware that I own, and it’s probably the most-used. It has never let me down.

Since I first started using the Keyspan adapter, I’ve bought over a dozen more for service techs, co-workers and even a couple of bosses. The Keyspan is extremely configurable, fast, reliable, durable and easy to use. The Keyspan adapter comes with a driver CD and a USB cable and takes just a few minutes to set up. I keep one in my laptop bag at all times.

UPDATE 4/5/12: it appears that Tripp-Lite has made a few changes since they took over the Keyspan line. Among the changes was a decision to use a cheaper USB socket. From the outside, it looks almost the same. The only notable difference is a lack of molded numbers (1, 2, 3 and 4) on the end of the plastic tab in the middle of the port. Unfortunately, the cheaper USB socket doesn’t retain the cable connector as well as the older ones did. The weaker spring conductors allow the cable to be pulled most of the way out of the socket, resulting in a lost connection and possibly a BSOD (blue screen of death).

I took a couple of the older Keyspan adapters (no Tripp-Lite logo on the housing) and a couple of the newer Keyspan adapters (with the Tripp-Lite logo on the housing), opened the housings and compared them. The differences I saw between old and new were minor: notably a different PCB manufacturer’s logo and a couple of chips that had changed brands. And the USB type B port. The old has a partial back shell (you can see the white plastic on the back of the port), while the new has a full back shell (can’t see the plastic in back).

The few cents that Tripp-Lite saved by using a cheaper socket isn’t worth it. Whereas the old Keyspans would easily support the weight of the adapter + a 10 ft. coiled-up serial cable, the new Keyspans cannot. The new ones can’t support the weight and allow the USB cable to pull partway out of the port. I tested 3 of the new Keyspan adapters and they all performed the same: almost no load-bearing capability at all.

Since the adapters still work fine except for the USB port, I simply desoldered the cheap-o port from each of the new adapters and replaced it with an FCI port (FCI PN 61729-1011BLF — 54 cents each). No more problems. Most users probably won’t be able replace the port, so a quick (if not awkward and/or ugly) fix is to either glue the USB cable into the port or use tape or a heavy rubber band to retain the cable.

Tripp-Lite, shame on you for ruining a perfectly good adapter to save a few pennies. I have reduced the adapter’s 5 star rating to 2 stars based on the poor quality of the new USB port. Like the old Baskin-Robbins saying goes, “There is hardly anything in the world that someone cannot make a little worse and sell a little cheaper, and the people who consider price alone are that man’s lawful prey.”

UPDATE 10/11/12: A coworker bought a half dozen new Keyspan USA-19HS adapters today, so I wasted no time in testing them out to see if the USB port problem was fixed. I tested all 6 of the adapters and was happy to see that none suffered from loose USB ports. The ports don’t have any numbers (1, 2, 3 and 4) molded on the end of the plastic tab in the middle of the port, so I’m guessing they’re not anything special, but they seem to hold onto the USB cable quite well. I only hope Tripp-Lite has learned a lesson about trusting others to adhere to high quality standards based on faith alone. I have updated the adapter’s rating from 2 stars to 4 stars based on seeing and testing this batch of adapters.

Read more

57 people found this helpful

Helpful

CommentReport abuse

Kenneth

4.0 out of 5 starsA must-have for programming (or pulling programs from) legacy PLCs.

December 6, 2018

Verified Purchase

Want a reliable means of connecting to industrial automation devices that utilize an RS-232 port without paying the “Allen-Bradley markup” for a 9300-USBS?Read on!

I purchased this item for the sole purpose of retrofitting an Allen-Bradley MicroLogix 1400 to a machine still running on a 1980’s-era SLC 150.(Please…Don’t ask.)I basically needed to pull the program from the venerable 150 and transliterate the instructions into RSLogix for the 1400.I won’t bore you with the “joy” that is reverse-engineering a program line by painstaking line in a utility written for DOS.XDWhat I WILL tell you is that when configured properly in Windows Device Manager (i.e. assigned to COM1), the ancient PCIS software recognized the USA-19HS as a “real” RS-232 port which worked flawlessly at 19.2k baud in DOSBox, which was a small miracle in and of itself considering this particular PLC was so overdue for retirement that it “forgot” its program and faulted the very minute I de-energized the machine and performed LOTO.-.-I am also pleased to report that this particular USB to Serial converter works equally well with the MicroLogix 1400 and autoconfigures like a dream in RSLinx, although the A-B software/hardware limits practical speeds to 19.2k baud maximum.

The adapter itself is a remarkably lightweight piece of kit that you can easily slip into your laptop bag or pocket, as the PCB is housed in a translucent smoke-colored plastic that I wish was a little sturdier, but I’ll elaborate more on that later.The tapered side of the adapter has a snug-fitting USB B female connector which is more than adequate to hold the weight of the adapter itself, while the wider side contains the obligatory 9-pin Male RS-232 port with securely attached posts that I’ve yet to see come unscrewed in use.The clamshell package also comes with a software installation disk that you MUST run before plugging the USA-19HS into your laptop or PC in addition to a USB A to B cord of decent length and quality.However, I highly recommend that you get a coiled one instead (which, thankfully, Tripp-Lite also makes) lest you do what I did and accidentally stretch the cord to the point where the adapter pulls free, falls onto a concrete floor, and bounces/skitters quite a few feet away.x.xI can’t imagine this adapter ever breaking in “normal” use, but in an industrial application, you definitely want to be more careful with it.Despite the housing only being held together by wishful thinking after my admittedly careless handling (as a few tabs broke off inside the unit), it continued to work without any issues whatsoever.I’d say this was pretty impressive for an inexpensive piece of equipment that you’d not expect to survive such treatment.

The bright side to this story is that Tripp-Lite’s customer service was extremely helpful and accommodating when I called them to explain what had happened, and that I was using it for my job.Without any further questions much less hassle, they told me they’d just send a new unit directly to my workplace free of charge.Although they did caution me not to make a habit of submitting future warranty claims, I’m still very pleased that they stand by their products so much for commercial/industrial users.

Were it not for the plastic Tripp-Lite uses in the unit’s housing, I’d have given the USA-19HS five stars easily.Granted, the aforementioned 9300-USBS is much more ruggedized and thus better suited for industrial use, but it also uses an FTDI chipset rather than the Texas Instruments chipset of the former and comes with a far more hefty price tag to boot.All said and done, I’d rather save my money and just treat the $25 Keyspan with kid gloves.Durability gripes aside, it’s an indispensible tool that shall always reside in my laptop bag along with my 1747-UIC and the 1745-PCC convertor that I’ll (hopefully) never need again.XD

Read more

One person found this helpful

Helpful

CommentReport abuse

W. Epperly

1.0 out of 5 starsDoes not work well with battery powered devices.

July 26, 2018

Verified Purchase

I bought two of these after having several older no-name prolific based devices stop working with the release of Windows 10.I have found this works great working with a computer, or other devices that have their negative side of their power supply tied to the AC neutral.Every device I tried to connect the serial lines to that were battery powered did not work.I then grabbed an off brand device and it worked fine.So if the the signal ground wire, pin 5 is not at the same potential as the as USB port data gnd, this unit will not work…well the two I have did not work.So if you are planning on connection to battery powered devices, find another one.Otherwise you will probably not have an issue like most people.

Read more

2 people found this helpful

Helpful

CommentReport abuse

SRAdie

5.0 out of 5 starsPerfect Solution for My Update

December 12, 2018

Verified Purchase

Effortless connection for my old Serial/Parallel port vinyl plotter. I have a 2000 model year Vinyl Express 32″ vinyl cutter that that had only a serial port connection. With this adapter, I was able to upgrade my machine to USB connection on a Windows 10 laptop. It was very simple once I updated my old Win 2000 software, the Vinyl Express software and then added this port converter so they could talk. I didn’t need anything more, even the CD was included with a driver that worked perfectly. Don’t give up on old serial port equipment if it still works well. This is a reliable and inexpensive solution. The connector takes a standard USB cable connection just like your printer has. A 3′ cable is included but since the adapter is independent of the cable, not molded together into one piece, you can use any standard USB cable to achieve the length you need. Highly Recommend!

Read more

Helpful

CommentReport abuse

See all 825 reviews

Write a customer review

Set up an Amazon Giveaway

Amazon Giveaway allows you to run promotional giveaways in order to create buzz, reward your audience, and attract new followers and customers. Learn more about Amazon Giveaway

This item: Tripp Lite Keyspan High-Speed USB to Serial Adapter, PC & Mac (USA-19HS)

Set up a giveaway

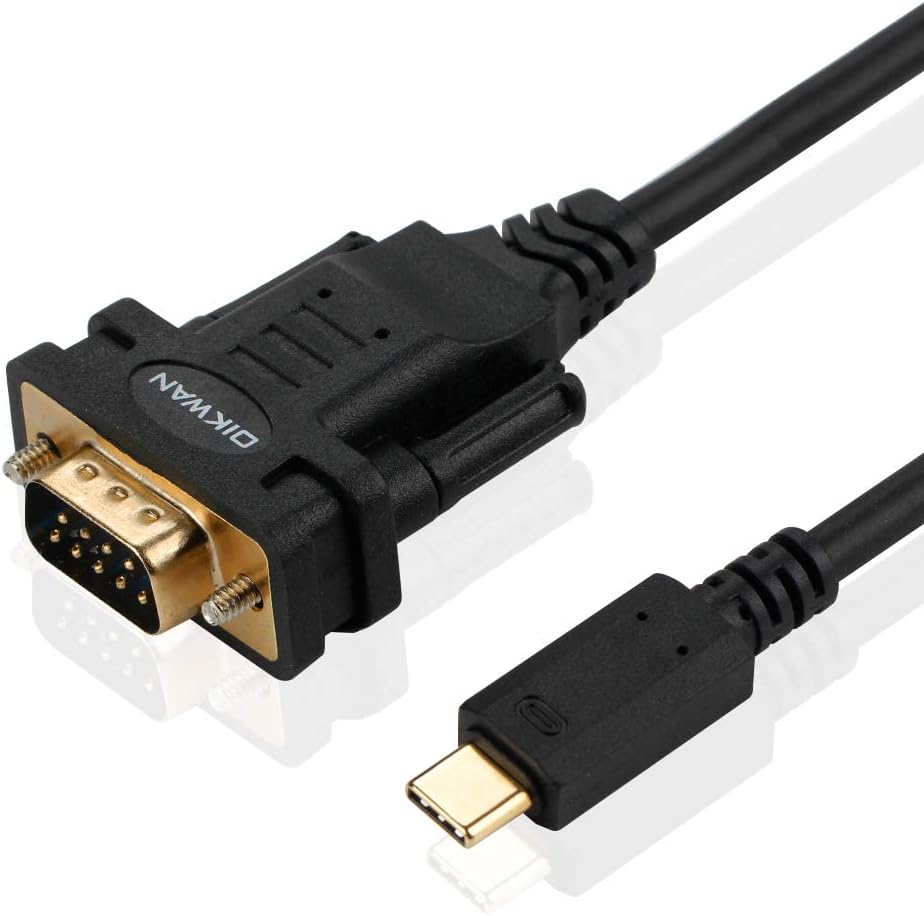

Supported Operating System of USB Type C RS232 DB9 Console Cable:
From FTDI company drivers support

Windows 10
Windows 8.1
Windows 8.1 x64
Windows 8
Windows 8 x64
Windows Server2012
Windows Server 2008 R2
Windows 7
Windows 7 x64
Windows Server 2008
Windows Server 2008 x64
Windows Vista
Windows Vista x64
Windows Server 2003
Windows Server 2003 x64
Windows XP
Windows XP x64
Windows ME
Windows 98
Linux
Mac OS X
Mac OS 9
Mac OS 8
Windows CE.NET (Version 4.2 and greater)
Android
Windows RT
Package included:

1* USB type c to RS232 DB9 Serial Adapter Cable

Note:

Driver free for Windows 7/ 8/ 8.1/ 10 system, when the pc connect the Internet, it should auto detect and install the driver. For other systems, you should download the drivers from FTDI official site.

FTDI drivers download link:
http://www.ftdichip.com/Drivers/VCP.htm
Driver installing guide:
http://www.ftdichip.com/Support/Documents/InstallGuides.htm
